Horizontal Pumps
All of Nagle’s heavy duty horizontal pump models share the same compact rugged heavy-duty construction. With only three wearing parts: casing, suction plate and impeller, these slurry and solids pumps tolerate a wide range of abrasive and corrosive applications. The enclosed shaft and cartridge bearing assembly protect bearings from contamination and pumpage blow-by. Nagle’s horizontal pumps are suitable for use as above or below the liquid level second stage booster pumps.

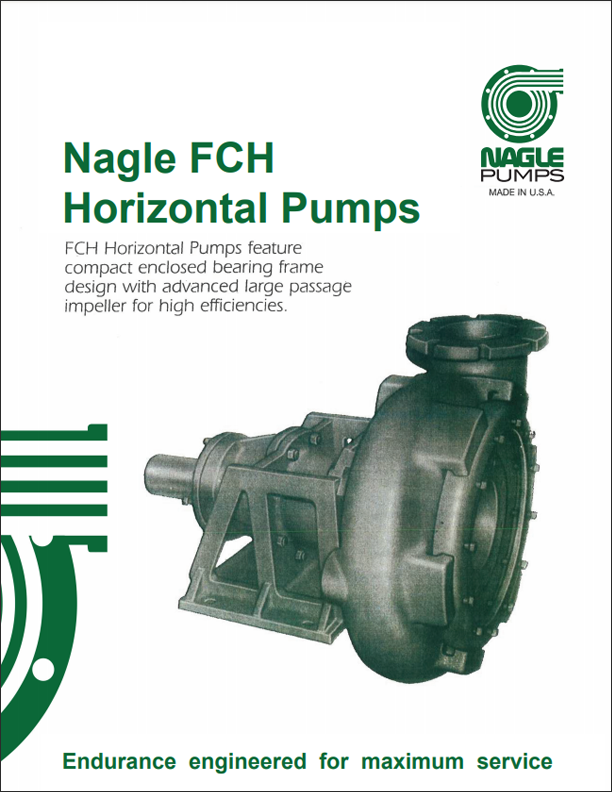

FCH/FDV-H Horizontal Pumps
Sizes: 1″ to 12″
Capacities: Up to 10,000+ gpm
Pressures: To 150 psi
Features
- Recommended for slurries with solids; large impeller passages reduce wear, efficiently manage flow
- Heavy wall sections maximize service life
- Adjustable impeller maintains design conditions
- Bearing isolators (Inpro) extend bearing life
- Heavy double row bearings increase durability and extended bearing life
- Piloted components insure concentricity during maintenance, impeller adjustments and assembly
- Front and back vanes control axial load control and reduce stuffing box pressure
- Stainless steel gland is standard
- Finite element designed shaft minimizes deflection and stress at packing
Options
- FDV-H Model vertical mounting configuration for dry pit installation
- Dry packing available
- Mechanical seal material selection, with dynamic seals available on selected sizes
- Suction inducers on selected sizes
- Priming Inductor for positive priming with heavy solids
KR Horizontal Pumps
KR Horizontal Pumps are a legacy product and only available as direct replacement for previously purchased pumps. Please contact us to discuss your replacement pump needs.
